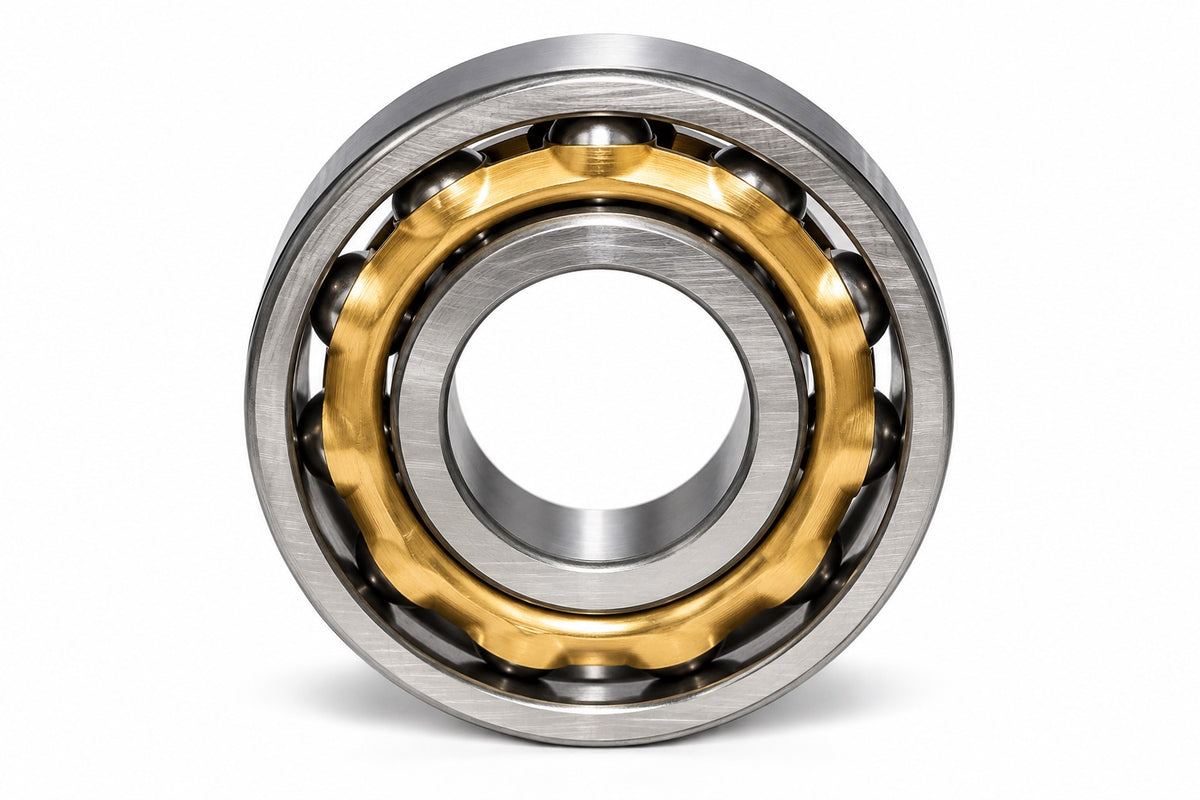

Bendix Lower Magneto Bearing | S-20 & S-200

The Bendix Lower Bearing is a replacement component for compatible Bendix S-20 and S-200 Series magnetos.

Designed to support the magneto's rotating shaft assembly, the lower bearing helps maintain proper shaft alignment and smooth rotation within the magneto housing.

This component is intended for magneto maintenance, repair, and rebuilding applications where the existing lower bearing requires replacement due to wear, deterioration, or damage.

Product Specifications

Part Number: 10-81806

Replacement drive-end ball bearing designed for select Continental / Bendix S-20, S-200, S4N, and S6N series magnetos.

This bearing supports the rotating magnet shaft, allowing smooth rotation while maintaining proper internal shaft alignment. Suitable for magneto servicing, rebuilding, and overhaul applications.

Product Features:

• Drive-end rotating magnet bearing

• Compatible with select 4-cylinder and 6-cylinder magnetos

• Suitable for S-20 and S-200 series applications

• Illustrated Parts Diagram Reference: #70

• Sold individually

Important: Verify your magneto assembly number and applicable parts manual before ordering.

Applications

Suitable for compatible Bendix S-20 and S-200 Series magneto assemblies used in Continental and Lycoming engine ignition systems.

Fitment Note: Verify compatibility with your specific magneto model and applicable illustrated parts catalog before ordering.
