Bendix magneto capacitor for select S-20, S-200 and S-1200 magnetos Continental and Lycoming engines

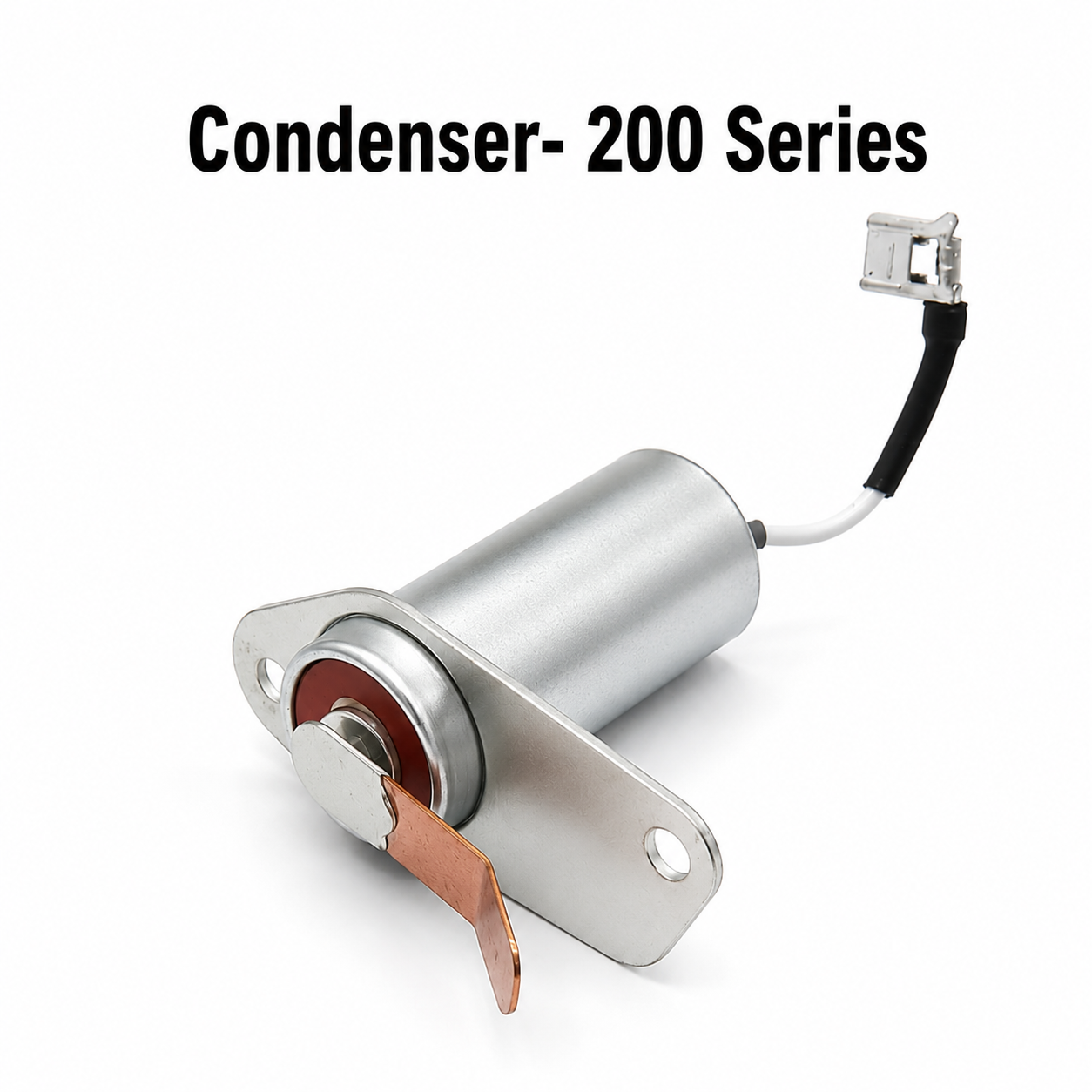

Replacement feed-through capacitor designed for select Continental / Bendix S-20, S-200 and S-1200 series magnetos.

This capacitor helps suppress electrical interference within the magneto ignition system while providing the appropriate electrical connection through the magneto contact cover.

Suitable for servicing and rebuilding compatible four-cylinder and six-cylinder Bendix magnetos.

Product Features:

• Feed-through magneto capacitor / condenser

• Capacitance: 0.37 µF

• Voltage Rating: 400 VDC

• Designed for applicable contact-cover-mounted installations

• Illustrated Parts Diagram Reference: #42

• Replacement Cross-Reference: KA10-400572

• Sold individually

Common Engine Applications:

Select Continental GPU - PE-150

Select Continental A-65, C-85, O-200, O-300, IO-360, O-470, IO-470, IO-520 and IO-550 engines.

Select Lycoming O-235, O-290, O-320, O-360, O-540, IO-540 and IO-720 engines.

Select Franklin four-cylinder and six-cylinder engines.

Fitment Notice: Not all magnetos within these engine families use the same capacitor. Verify the installed magneto assembly number and capacitor configuration before ordering.
