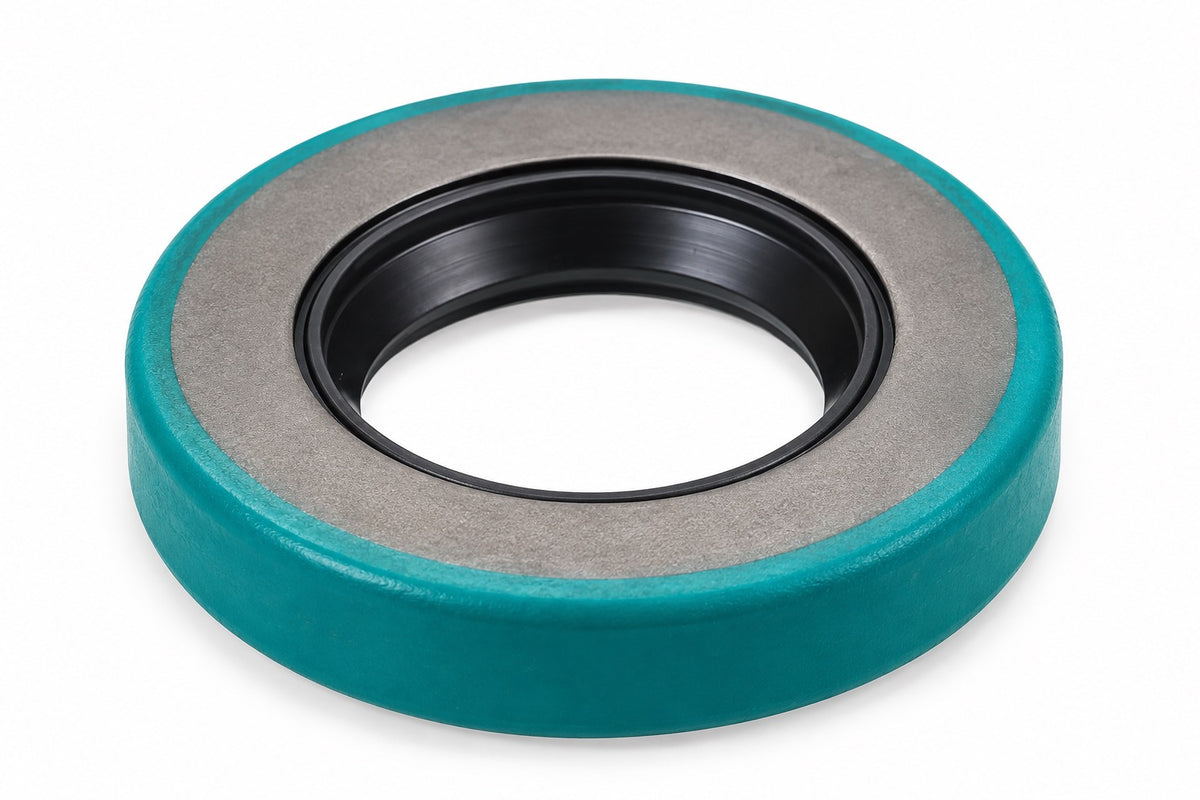

The Magneto Oil Seal is a replacement radial shaft seal designed for compatible Bendix S-20 and S-200 Series magneto assemblies.
Installed at the magneto drive end, this seal helps prevent engine oil from entering the magneto housing while maintaining a seal around the rotating drive shaft.
An essential component for magneto maintenance and rebuilding, this replacement oil seal is ideal for addressing worn, hardened, damaged, or leaking drive-end seals.
Illustrated Parts Diagram Reference
Item #59
Compatible Magneto Models
|
Magneto Models |
Series |
Configuration |
|---|---|---|
|
S4LN-20 / S4RN-20 |
S-20 |
4-cylinder |
|
S4LN-21 / S4RN-21 |
S-20 |
4-cylinder |
|
S4LN-200 / S4RN-200 |
S-200 |
4-cylinder |
|
S4LN-201 / S4RN-201 |
S-200 |
4-cylinder |
|
S4LN-204 / S4RN-204 |
S-200 |
4-cylinder |
|
S4LN-205 / S4RN-205 |
S-200 |
4-cylinder |
|
S6LN-20 / S6RN-20 |
S-20 |
6-cylinder |
|
S6LN-21 / S6RN-21 |
S-20 |
6-cylinder |
|
S6LN-200 / S6RN-200 |
S-200 |
6-cylinder |
|
S6LN-201 / S6RN-201 |
S-200 |
6-cylinder |
|
S6LN-204 / S6RN-204 |
S-200 |
6-cylinder |
|
S6LN-205 / S6RN-205 |
S-200 |
6-cylinder |
Product Features
-
Replacement magneto drive-end oil seal.
-
Designed for compatible Bendix S-20 and S-200 Series magnetos.
-
Helps prevent engine oil intrusion into the magneto housing.
-
Provides sealing around the rotating magneto drive shaft.
-
Suitable for magneto maintenance, repair, and rebuilding.
-
Manufactured by SKF.
Seal Dimensions
Specification
Details
Inside Diameter
0.750"
Outside Diameter
1.375" nominal
Width
0.250"
Material
Nitrile Rubber (NBR)
Design
CRWA1
Construction
Metal case, dual lip with garter spring
