Lycoming IGO & IGSO-540 Starter, Generator, Vacuum, Hydraulic & Fuel Pump Cover Gasket Kit
Lycoming IGO & IGSO-540 Starter, Generator, Vacuum, Hydraulic & Fuel Pump Cover Gasket Kit
Couldn't load pickup availability
Complete replacement gasket kit for servicing the starter, generator, vacuum pump, hydraulic pump, and fuel pump accessory cover areas on select Lycoming IGO-540 and IGSO-540 series engines.
This kit combines the primary accessory-drive cover gaskets into one convenient package for maintenance, overhaul, component replacement, or reassembly.
Kit Includes
| Drawing # | Part Number | Description | Qty |
|---|---|---|---|

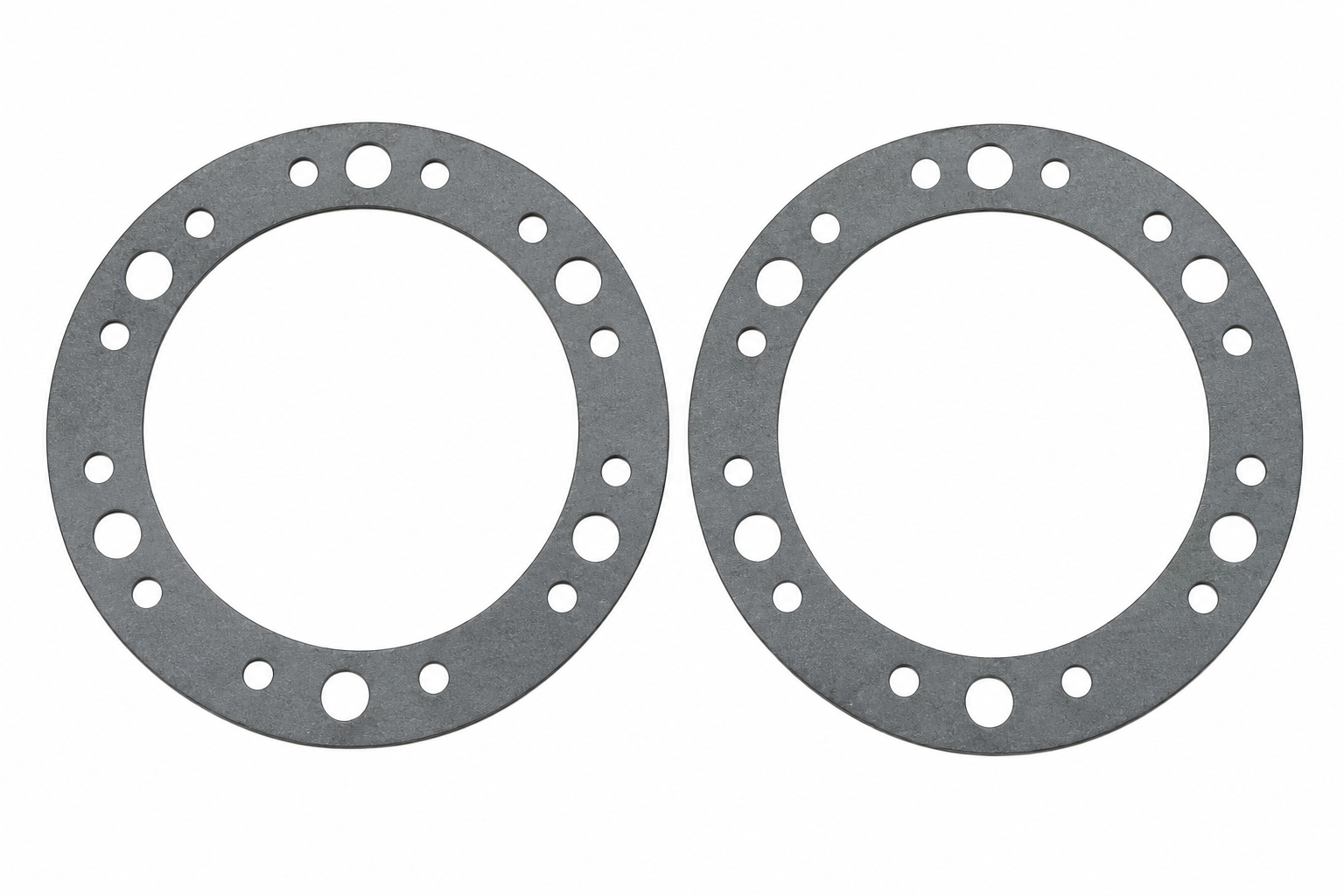

| 2 | MS9136-01 | Accessory Drive Cover Gasket | 2 |
| 11 | 20415 | Hydraulic Pump Cover Gasket | 1 |
| 6 | 8313 | Vacuum Pump Cover Gasket | 1 |
| 23 | 1691-C | Fuel Pump Cover Gasket | 1 |
Total Kit Quantity: 5 Gaskets
Engine Compatibility
Designed for use with select:
Lycoming IGO-540 Series
Lycoming IGSO-540 Series
Applications
This gasket kit is intended for accessory-section service involving the:
- Starter / accessory drive cover
- Generator / accessory drive cover
- Hydraulic pump cover
- Vacuum pump cover
- Fuel pump cover
Ideal for replacing old, compressed, damaged, or leaking gaskets whenever accessory components or cover plates are removed.
Fitment Note: IGO-540 and IGSO-540 configurations can differ by engine model and installed accessories. Verify the individual gasket part numbers against the applicable Lycoming parts catalog for your specific engine configuration before installation.
