Keep your Lycoming engine’s pushrod tube system properly sealed and operating as designed with this Lycoming Pushrod Housing Kit. This complete assembly combines the pushrod shroud tube with the spring, washer, sleeve, and sealing components required for installation.
Ideal for engine repairs, cylinder replacement, top-end service, and overhaul work, this kit eliminates the need to source the individual pushrod housing components separately.
Kit Includes

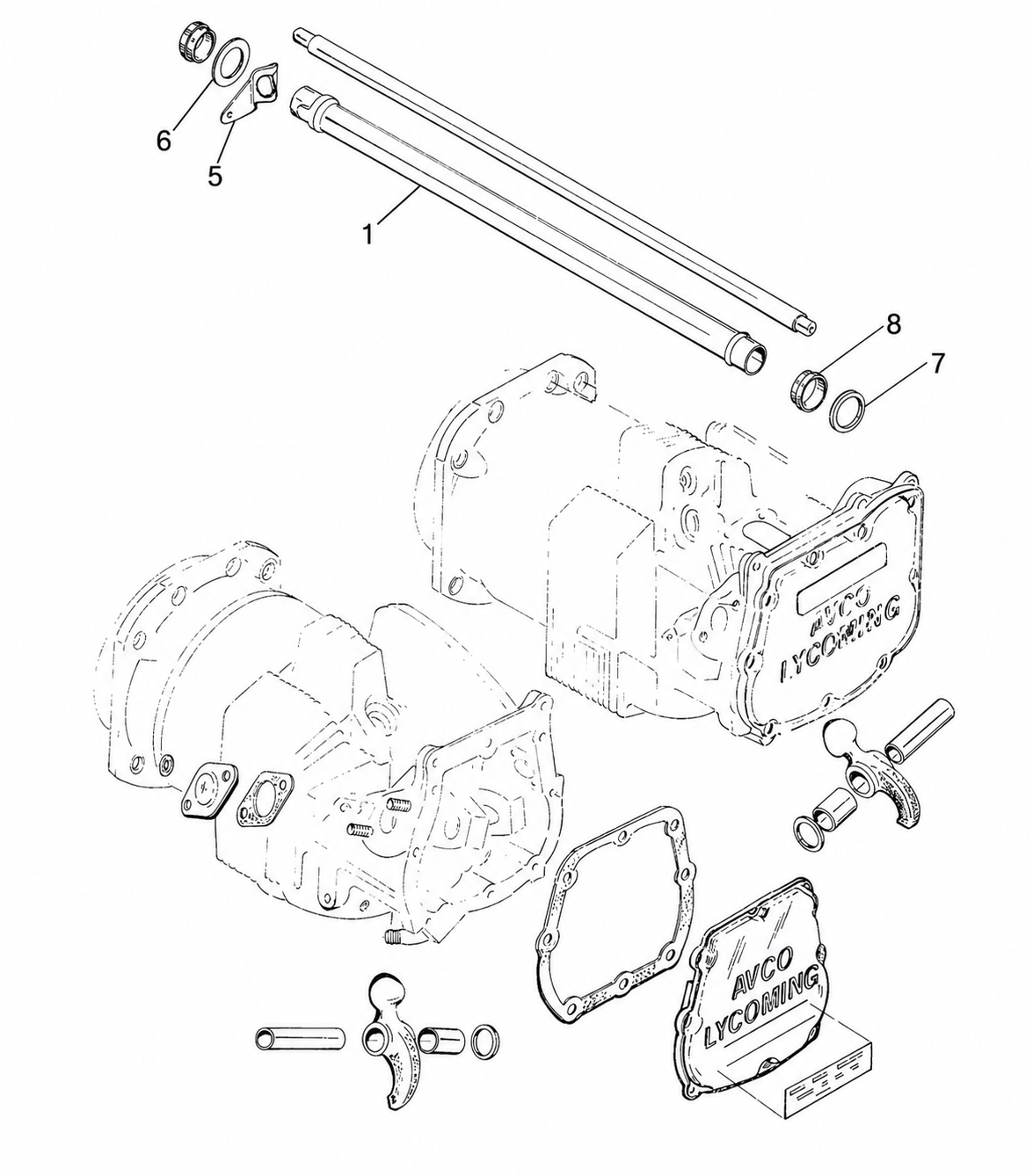

| Diagram Item | Qty | Description |
|---|---|---|

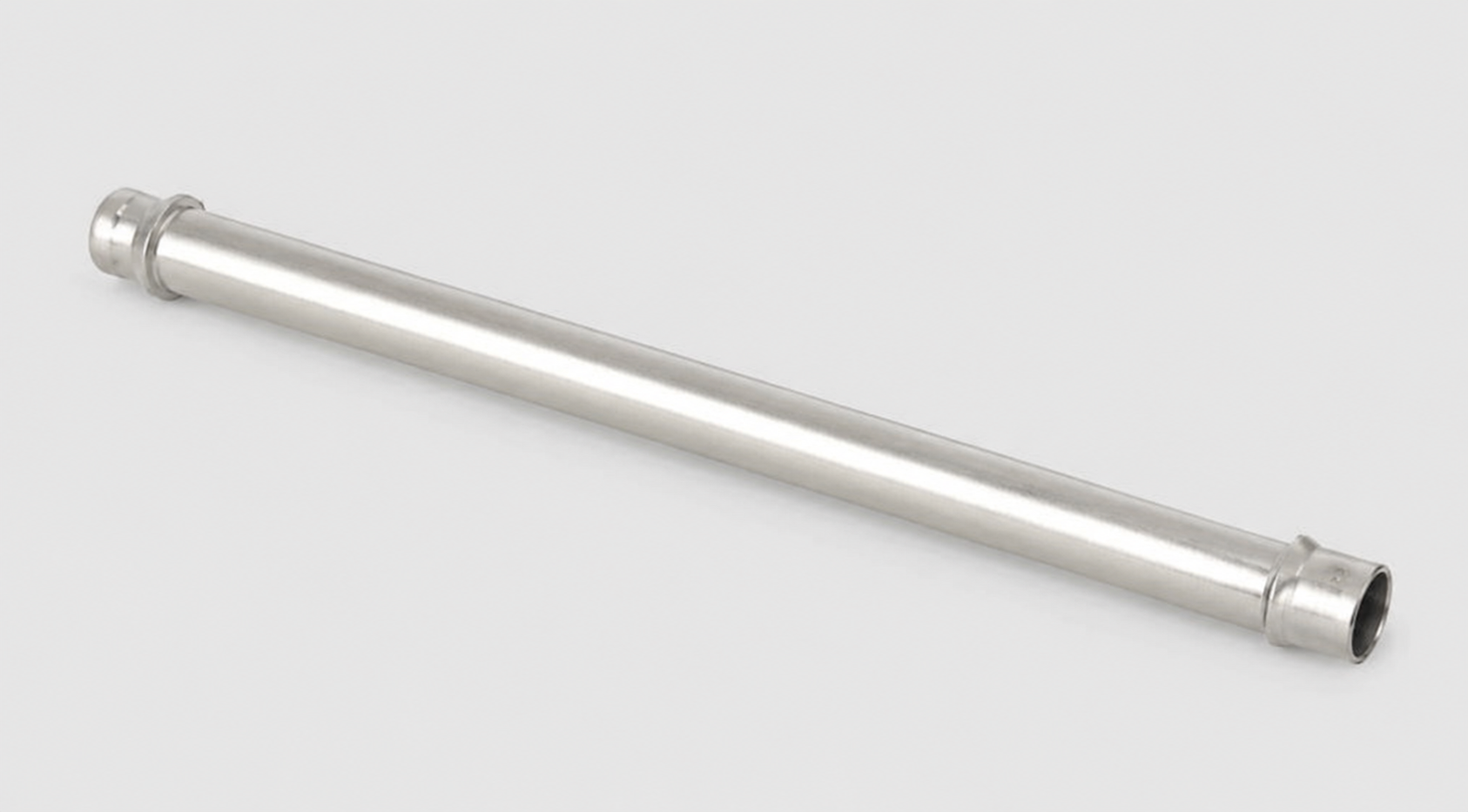

| 1 | 1 | Shroud Tube Assembly – Push Rod |

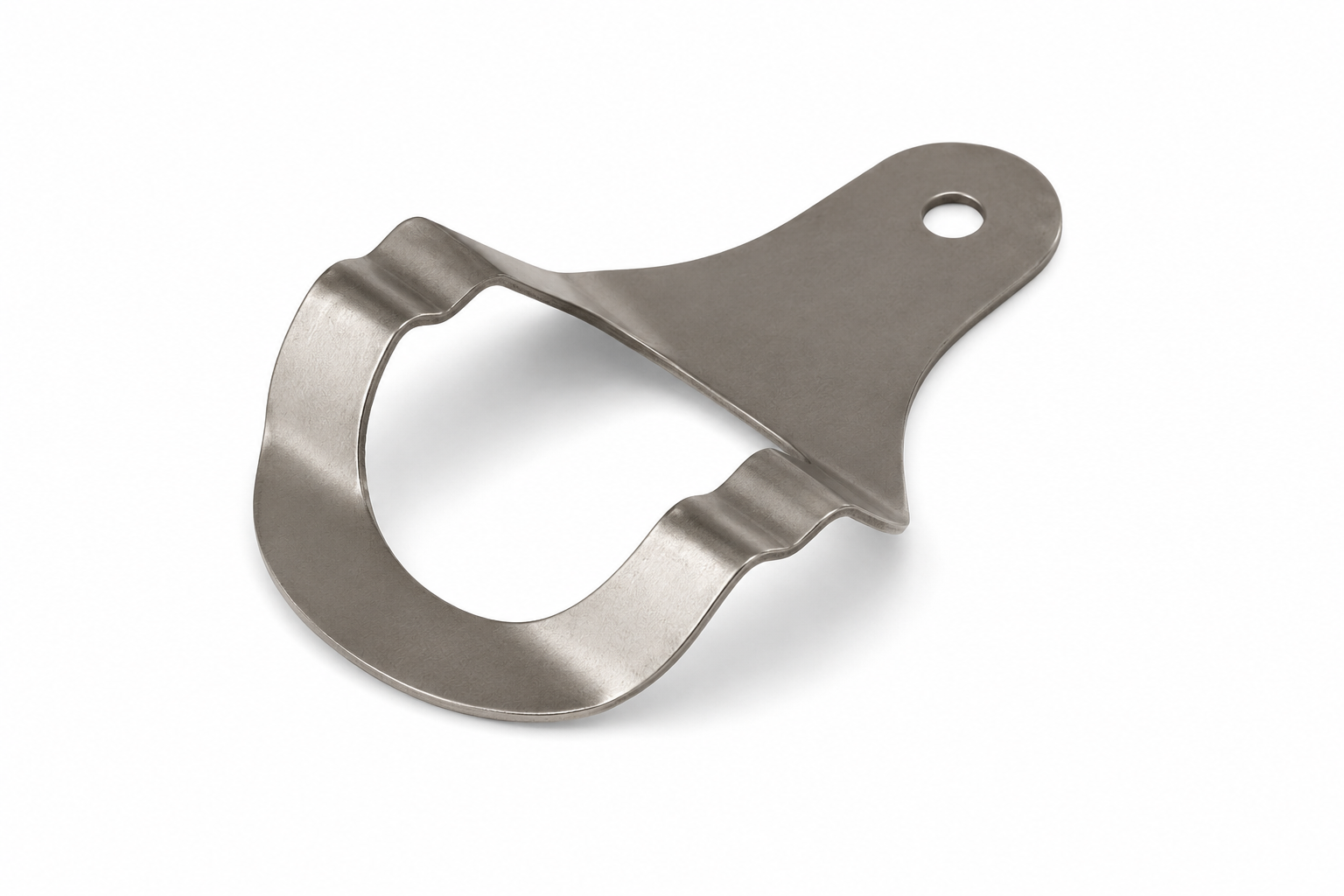

| 5 | 1 | Shroud Tube Spring |

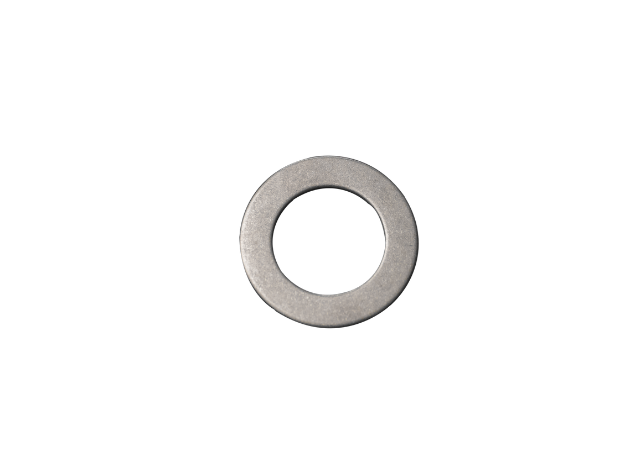

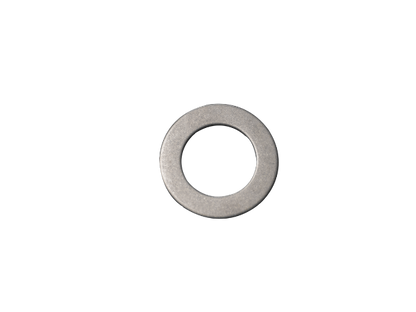

| 6 | 1 | Washer – 25/32" ID × 1-1/4" OD × 1/32" |

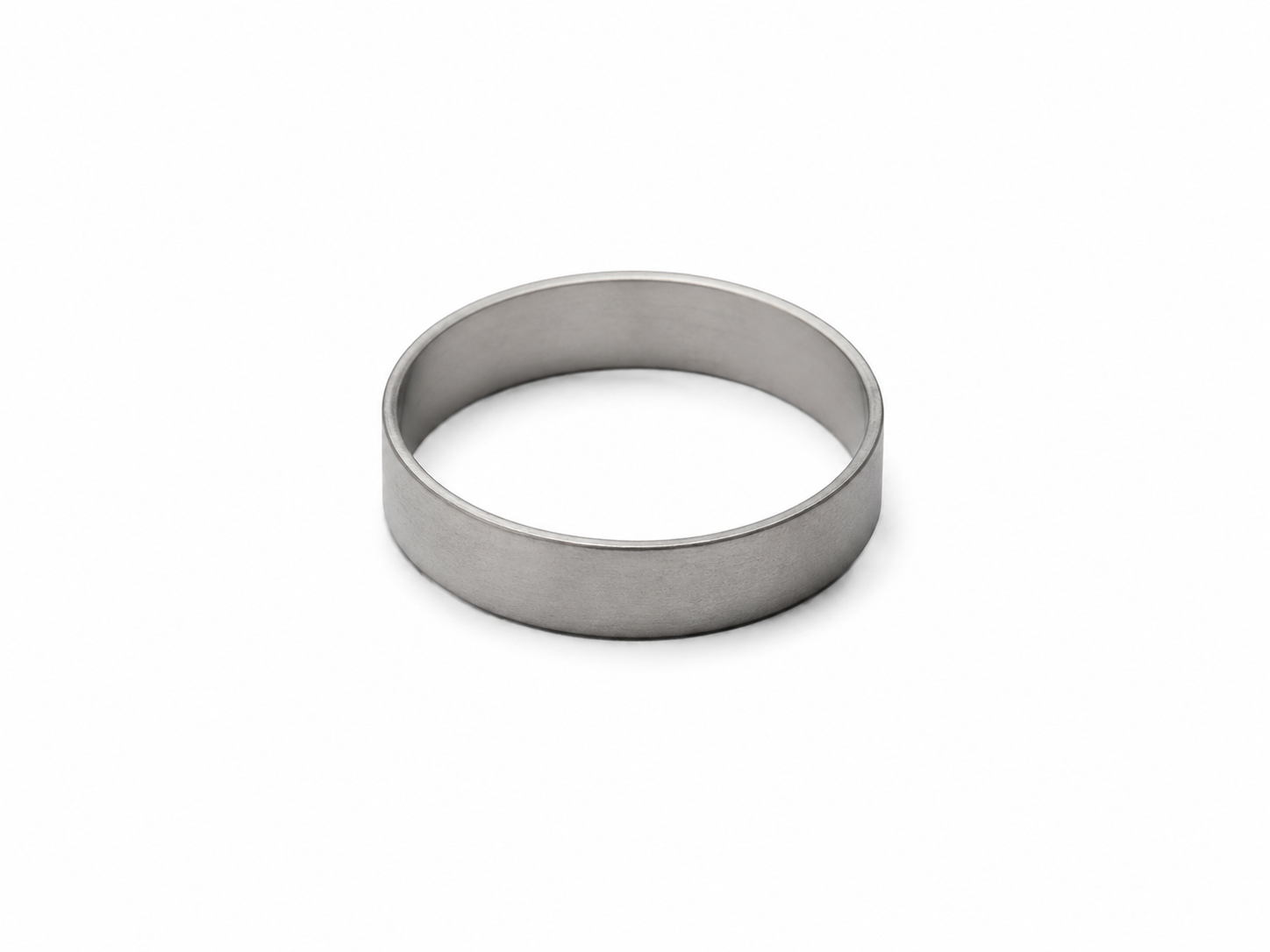

| 7 | 1 | Sleeve – Shroud Tube Seal |

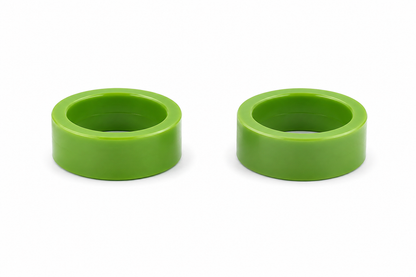

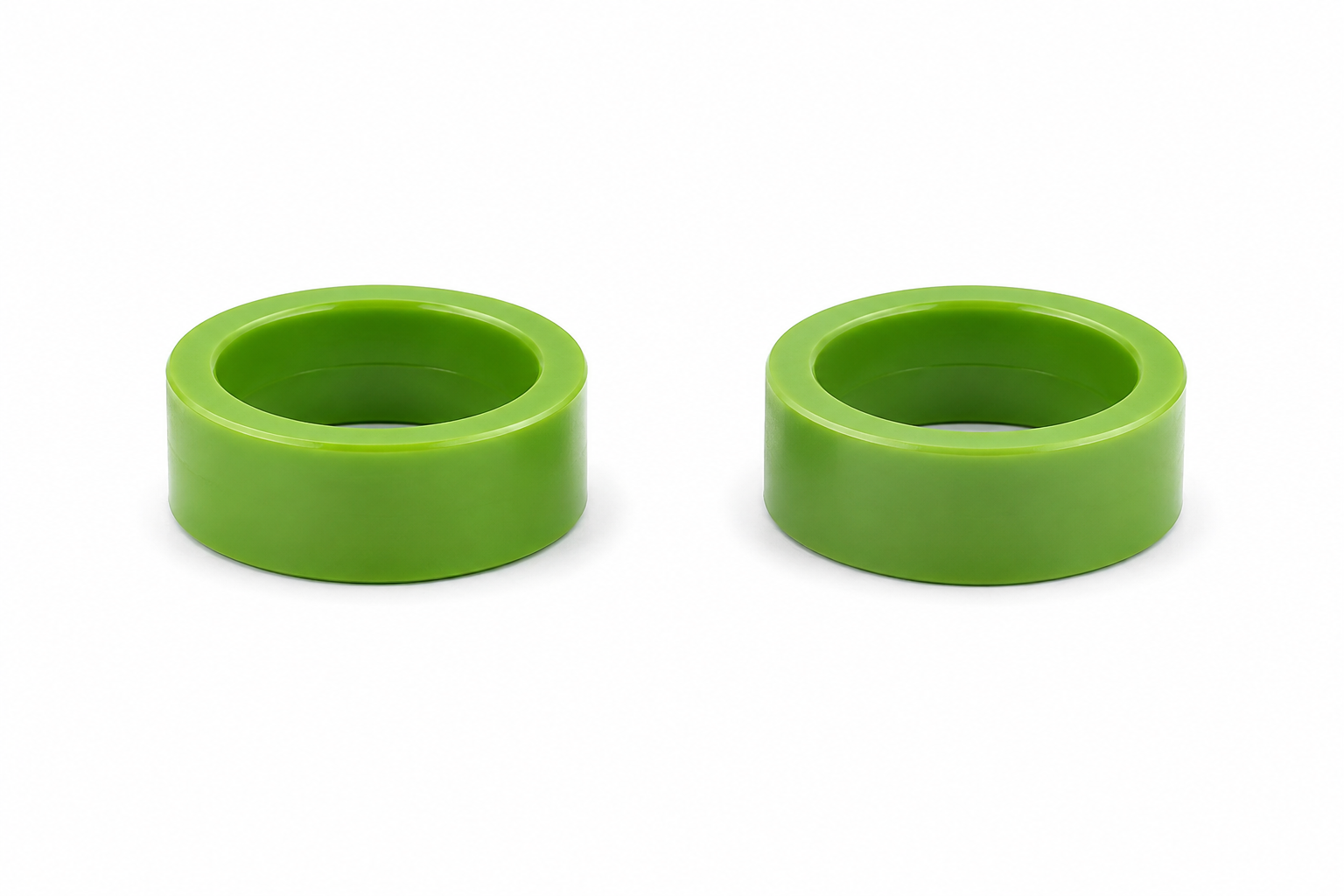

| 8 | 2 | Shroud Tube Seals |
Quantity: One complete pushrod housing/shroud tube kit.
Product Features
- Complete Lycoming pushrod shroud tube assembly
- Includes spring, washer, seal sleeve, and both sealing components
- Helps provide proper sealing between the cylinder and crankcase
- Convenient solution for cylinder installation and top-end engine service
- Replaces worn, damaged, leaking, or corroded pushrod housing components
- Suitable for a wide range of Lycoming 360 and 540-series engine configurations
Engine Compatibility
AEIO-360:
-A1E
AIO-360:
-A1A, -A1B, -B1B
HIO-360:
-A1A, -C1A, -C1B, -D1A, -E1AD, -E1BD, -F1AD
IO-360:
-A1A, -A1B, -A1B6, -A1B6D, -A1C, -A1D, -A1D6, -A2A, -A2B, -A3B6D, -C1A, -C1B, -C1C, -C1C6, -C1D6, -C1E6, -C1F, -J1A6D
IO-540:
-A1A5, -B1A5, -B1C5, -E1A5, -E1B5, -G1A5, -G1B5, -G1C5, -G1D5, -G1E5, -G1F5, -K1A5, -K1B5, -K1C5, -K1D5, -K1E5, -K1F5, -K1F5D, -K1G5, -K1J5, -K1J5D, -M1A5, -P1A5, -S1A5
LIO-360:
-C1E6
LTIO-540:
-F2BD, -J2B, -J2BD, -N2BD, -R2AD
TIO-360:
-A1B
TIO-540:
-A1A, -A1B, -A2A, -A2B, -A2C, -F2BD, -J2B, -J2BD, -N2BD, -R2AD, -S1AD
Why Replace the Complete Pushrod Housing Assembly?
Pushrod shroud tubes and their seals are common sources of engine oil leaks, particularly as seals age, harden, or become damaged during cylinder removal and installation. Replacing the housing components and seals together provides a convenient way to refresh the complete assembly during engine service.
This kit is especially useful when servicing Lycoming-powered airboats, where engine vibration, operating environment, and regular maintenance can make dependable pushrod tube sealing especially important.
Important Fitment Information
Lycoming engines were produced in numerous configurations and may have been modified or rebuilt over their service life. Always verify your engine model, configuration, and required part numbers before ordering.
